Freedom Gray Copper Ridge Cap Roof Flashing

Freedom Gray Ridge Cap Roof Flashing

Product SKU :

$ 152.95 209.95 USD $ 152.95

$ 152.95

Material
Size
Roof Pitch / Inside Angle
Hems
Product custom made to order
- I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.

This combination does not exist.

ADD TO CART BUY NOW

Bulk Quantity Discounts!!

SKU Number:

Variant	Min. Quantity	Price per Unit
[FRC12-12] Freedom Gray Ridge Cap Roof Flashing Material: Choose Material Size: Small Product custom made to order: I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.	200.0	$ 152.95 $ 149.95
[FRC12-1201] Freedom Gray Ridge Cap Roof Flashing Material: 16 oz. Freedom Gray Size: Small Product custom made to order: I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.	200.0	$ 152.95 $ 149.95
[FRC12-1202] Freedom Gray Ridge Cap Roof Flashing Material: 20 oz. Freedom Gray Size: Small Product custom made to order: I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.	200.0	$ 195.95 $ 192.95
[FRC18-1201] Freedom Gray Ridge Cap Roof Flashing Material: 16 oz. Freedom Gray Size: Large Product custom made to order: I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.	200.0	$ 209.95 $ 206.95
[FRC18-1202] Freedom Gray Ridge Cap Roof Flashing Material: 20 oz. Freedom Gray Size: Large Product custom made to order: I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.	200.0	$ 252.95 $ 249.95
[FRC12-12] Freedom Gray Ridge Cap Roof Flashing Material: Choose Material Size: Small Product custom made to order: I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.	100.0	$ 152.95 $ 150.95
[FRC12-1201] Freedom Gray Ridge Cap Roof Flashing Material: 16 oz. Freedom Gray Size: Small Product custom made to order: I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.	100.0	$ 152.95 $ 150.95
[FRC12-1202] Freedom Gray Ridge Cap Roof Flashing Material: 20 oz. Freedom Gray Size: Small Product custom made to order: I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.	100.0	$ 195.95 $ 193.95
[FRC18-1201] Freedom Gray Ridge Cap Roof Flashing Material: 16 oz. Freedom Gray Size: Large Product custom made to order: I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.	100.0	$ 209.95 $ 207.95
[FRC18-1202] Freedom Gray Ridge Cap Roof Flashing Material: 20 oz. Freedom Gray Size: Large Product custom made to order: I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.	100.0	$ 252.95 $ 250.95
[FRC12-12] Freedom Gray Ridge Cap Roof Flashing Material: Choose Material Size: Small Product custom made to order: I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.	50.0	$ 152.95 $ 151.95
[FRC12-1201] Freedom Gray Ridge Cap Roof Flashing Material: 16 oz. Freedom Gray Size: Small Product custom made to order: I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.	50.0	$ 152.95 $ 151.95
[FRC12-1202] Freedom Gray Ridge Cap Roof Flashing Material: 20 oz. Freedom Gray Size: Small Product custom made to order: I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.	50.0	$ 195.95 $ 194.95
[FRC18-1201] Freedom Gray Ridge Cap Roof Flashing Material: 16 oz. Freedom Gray Size: Large Product custom made to order: I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.	50.0	$ 209.95 $ 208.95
[FRC18-1202] Freedom Gray Ridge Cap Roof Flashing Material: 20 oz. Freedom Gray Size: Large Product custom made to order: I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.	50.0	$ 252.95 $ 251.95

Product custom made to order: I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.

Terms and Conditions
30-day money-back guarantee
Lead Time: 10.0 Days

Ridge Cap Roof Flashing Metal - 10' Length

Flashing metal used on tile, slate, wood, shingle and metal roofs. Available in 16 oz. and 20 oz. Freedom Gray.

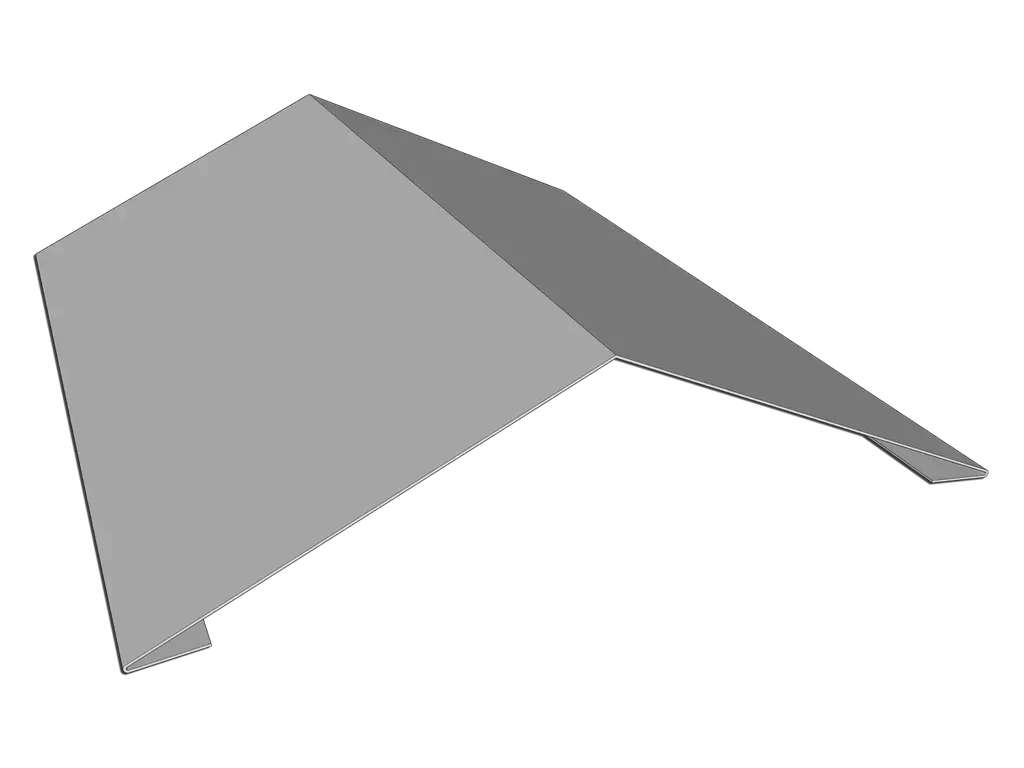

A Ridge Cap is a piece of roof flashing metal placed at the very peak of the roof, where the two roof slopes meet, creating the ridge.
This is the very last step on installing a roof system. It is not only a decorative portion of a roof, but it creates a leak proof water directional barrier.
This simple profile can be used with mostly any roof system, but its design comes from its usage on metal roof systems, where it hooks onto J channels on both sides of the ridge.
Custom profiles and dimension changes can be quoted via email.

Specifications

Material: 16 oz. and 20 oz. Freedom Gray
10' Lengths
Made to Order
Made in the USA

Size	Material	(A)	(B)	(C)	(D)	Stock
Small	Copper, Freedom Gray, Lead Coated Copper	5.25"	5.25"	0.75"	0.75"	12"
Large	Copper, Freedom Gray, Lead Coated Copper	8.25"	8.25"	0.75"	0.75"	18"
Small	Aluminum, Steel, Galvalume and Stainless Steel	5.25"	5.25"	0.75"	0.75"	12"
Large	Aluminum, Steel, Galvalume and Stainless Steel	7.25"	7.25"	0.75"	0.75"	16"

Roof Ridge Angle

Roof Pitch	Roof Slope	Ridge Angle	Finished Flashing Angle (Measured on the inside)
1"	4.76°	9.52°	170° (170.48°)
2"	9.46°	18.92°	161° (161.08°)
3"	14.04°	28.08°	152° (151.92°)
4"	18.43°	36.86°	143° (143.14°)
5"	22.62°	45.24°	135° (134.76°)
6"	26.57°	53.14°	127° (126.86°)
7"	30.26°	60.52°	119° (119.48°)
8"	33.69°	67.38°	113° (112.52°)
9"	36.87°	73.74°	106° (106.26°)
10"	39.81°	79.62°	100° (100.38°)
11"	42.51°	85.02°	95° (94.98°)
12"	45°	90°	90°
13"	47.29°	94.58°	85° (85.42°)
14"	49.4°	98.8°	81° (81.2°)
15"	51.34°	102.68°	77° (77.32°)
16"	53.13°	106.26°	74° (73.74)
17"	54.78°	109.56°	70° (70.44°)
18"	56.31°	112.62°	67° (67.38°)

All dimensions are approximate with ~1/8" tolerance.

Submittals & Downloads

PDF - Ridge Cap Roof Flashing Metal

Color and Material Options

Unpainted Stocked Materials

Bonderized Steel

Copper

Freedom Gray

Galvalume Plus

Lead Coated Copper

Mill Finish Aluminum

Stainless Steel

More Information

Bonderized Steel: Also known as Paint Grip. Offered in 26 gauge G90. 24 gauge available as special order.

Copper is commonly stocked in 3′ x 10′ and 4’x10′ sheets, 11.75″, 15″ 18″, 20″, 24″ (16 oz. or 20 oz.) and 36″ coil (16 oz.). 24 oz. and 32 oz. are available in 3′ x 10′ sheets. Our typical stock is 1/8 to 1/4 hard copper, supplied by Aurubis, Hussey and Revere.
We also stock 1″ x 3/16″ x 12′ bar stock. Other sizes as well as 48 oz. copper are available as special order items.

Freedom Gray is commonly stocked in 3′ x 10′ sheets of 16 oz. and 20 oz. Coils are available as a special order item with a 1000 lb. minimum. Freedom gray is a Tin / Zinc coated copper from Revere Copper.

Galvalume Plus is an Acrylic coated metal, also known as Acrylume. K&M utilizes Acrylume E Plus™ supplied by US Steel.

Galvanized Steel: Offered in 26 gauge G90. 24 gauge available as special order.

Lead Coated Copper is commonly stocked in 3′ x 10′ sheets of 16 oz. and 20 oz. Special order items include 3′ x 8′ sheets and 12″, 15″, 18″, 20″ and 24″ coil stock. A minimum of 1000 lbs. is required for a coil order.

Mill finish Aluminum is commonly stocked in 4′ x 10′ sheets of 0.032″ and 0.040″.

Stainless Steel in normally available in 24 and 26 gauge 4′ x 10′ sheets, 304 alloy 2B finish. Other thickness, and finishes such as #4, #8 and 2D available as special order items.

Downloads / Color Charts

PDF – Acrylume E Plus Coated Sheet Steel (Data Sheet)
PDF – Aluminum – Alcoa (SDS)
PDF – Copper (ASTM B370 Building Spec Sheet)
PDF – Copper – Revere (Spec Sheet)
PDF – Copper – Revere (MSDS)
PDF – Freedom Gray Copper – Revere (Spec Sheet)
PDF – Lead Coated Copper (ASTM B101 02 Building Spec Sheet)
PDF – Stainless Steel – Outokumpu (Data Sheet)

PDF – Expanded Aluminum Metal Flattened
PDF – Expanded Copper Metal Flattened

Copper is the most popular metal roofing and flashing metal. It is offered in 16 oz. and 20 oz.
Freedom Gray® (zinc / tin coated copper) is offered in 16 oz. and 20 oz.
Lead Coated Copper is offered in 16 oz. and 20 oz.
Stainless steel is offered in 24 gauge 304 2B.
Zinc is offered in 0.7 mm and 0.8 mm with a raw finish.

Looking for a custom color not listed? Please EMAIL your request with all information including the metal manufacturer for a quote.

Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
